Lakehouse Architecture

Purpose

We align Fabric lakehouses to the Medallion architecture (Bronze/Silver/Gold) and map those tiers to our semantic layers (Landing/Staging -> ADS -> Gold business products). Combined with Delta Lake optimization, this creates a clear path from raw data to business-ready products with strong data quality and performance.

Overview

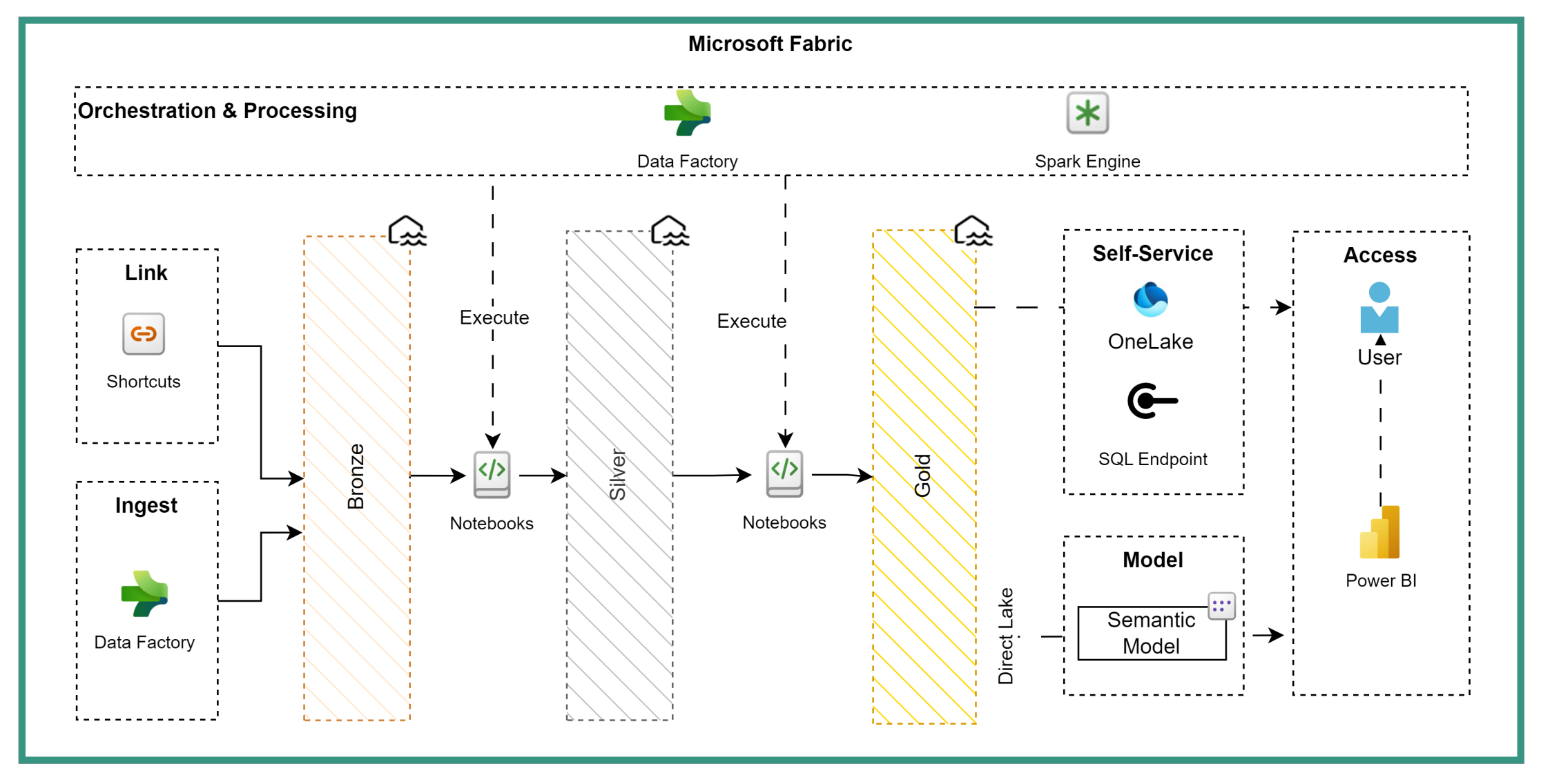

The Lakehouse enforces a clear path from raw data to analytics-ready assets (Bronze -> Silver -> Gold). The table below highlights the primary responsibilities of each layer.

Layer	Responsibility
Bronze	Ingest and persist raw source data with minimal transformation and audit metadata (Landing/Staging)
Silver	Standardize, clean, and enforce schema/quality checks (ADS)
Gold	Produce business-ready marts, aggregates, and models optimized for consumption

%%{init: { "flowchart": { "useMaxWidth": true, "curve": "basis" }, "theme": "base" } }%%
graph LR
  Source[(Source Systems)] --> Bronze["Bronze<br/>raw (Landing/Staging)"]
  Bronze --> Silver["Silver<br/>standardized (ADS)"]
  Silver --> Gold["Gold<br/>business-ready"]
  Gold --> Semantic["Semantic Models & Reports"]

Quick Reference: Do's and Don'ts

Do	Don't
Use Delta format for transactional tables	Mix different storage formats without reason
Implement clear Bronze -> Silver -> Gold layers	Skip layers or mix responsibilities
Add audit columns in Bronze layer	Modify source data during initial ingestion
Implement automated quality gates	Promote data without validation checks
Use partitioning for large tables strategically	Over-partition small tables
Enable shortcuts cache for cross-geo reads	Create redundant copies across regions
Separate sensitive data into distinct lakehouses	Mix different sensitivity levels
Implement regular file compaction jobs (vacuum and optimize)	Let small files accumulate

Core concepts

Separation of concerns by layer simplifies governance and enables targeted performance tuning. Delta format enables ACID operations and simplifies incremental processing.

Implementation

1. Start with a Bronze -> Silver flow for a single domain. Automate schema checks and deduplication at Silver.
2. Use Delta and implement automated compaction and Z-ordering for high-selectivity query columns.
3. Define SLAs and monitoring for ingestion latency, freshness, and error rates.

Layer responsibilities

Layer	Purpose	Typical content	Key controls
Bronze	Land raw files	Raw tables, Parquet/Delta	Retention, audit columns
Silver	Standardize and validate	Cleansed entities	Data quality checks
Gold	Business models	Facts/dimensions, aggregates	Performance tuning

Storage & formats

• Always prefer Delta for transactional compatibility and ACID operations.
• Use Parquet for archival where Delta is not required.

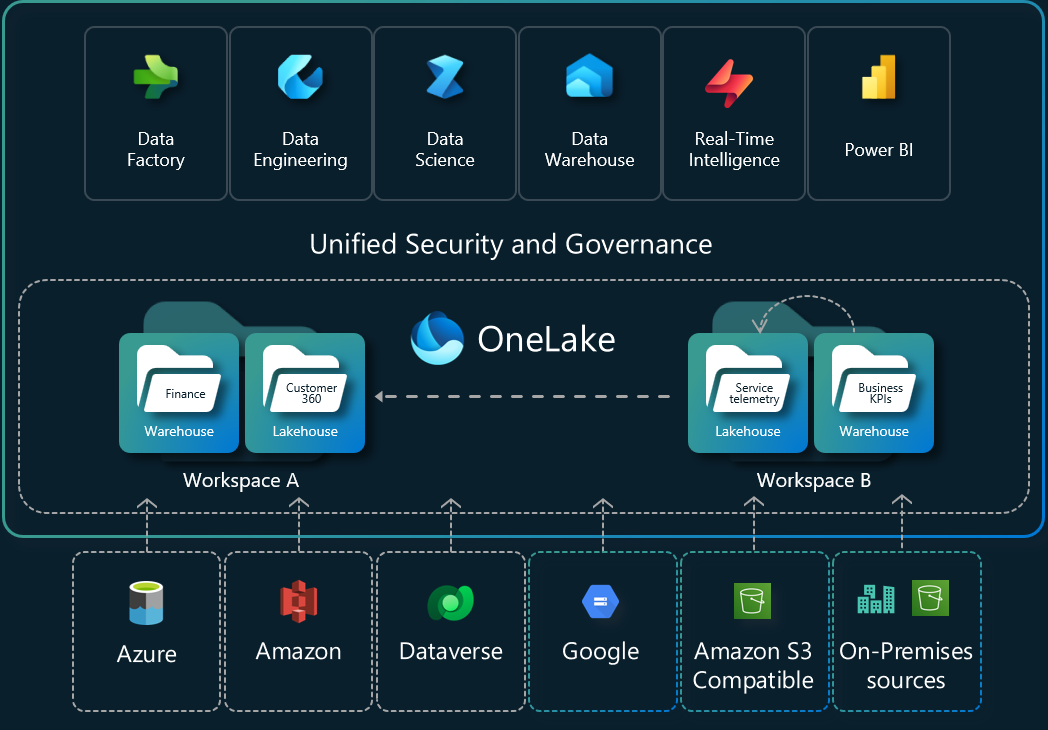

OneLake & Shortcuts (practical notes)

• OneLake surfaces ADLS Gen2 with Fabric-specific capabilities (shortcuts, cache). Use OneLake Shortcuts to connect existing data lakes without duplicating data. Two useful shortcut types:
• File Shortcuts: point to files (CSV/JSON) and are best used in Bronze/landing layers. File Shortcuts are not accessible via SQL endpoints.
• Table Shortcuts: point to Delta/managed tables and are ideal in Silver/Gold layers to share curated data across lakehouses.
• Consider enabling Shortcuts Cache for cross-geo reads to reduce egress costs; weigh cache costs vs egress savings for high-read volumes.

Multiple Lakehouses & sensitivity

• Prefer multiple lakehouses when you need isolation for security, sensitivity labels, or separate compute boundaries. Separate lakehouses make it easier to apply sensitivity labels and manage granular access controls.

Example (SQL):

CREATE TABLE bronze.raw_orders USING DELTA LOCATION '/lakehouse/bronze/orders';

Partitioning & file layout

Strategy	When	Example
Date partition	Large time-series	partition(date)
Hash/Key	High-cardinality joins	partition(customerId)
No partition	Small tables	-

Organize files by domain and layer: /lakehouse/<domain>/<layer>/...

Quality Gates (recommended)

1. Bronze -> Silver: schema checks, null ratios, deduplication.
2. Silver -> Gold: referential integrity, business-rule validation, aggregation checks.

Implement as automated notebooks/jobs with failure alerts.

Performance & tuning

Technique	Benefit	Notes
File compaction	Fewer paths, faster scans	Run periodically
Z-ordering	Better predicate pruning	Use on high-selectivity columns
Caching	Faster repeated queries	Use sparingly

tip

You can define table properties to lift performance

ALTER TABLE silver.orders SET TBLPROPERTIES (
  'delta.autoOptimize.autoCompact' = 'true',
  'delta.autoOptimize.optimizeWrite' = 'true'
);

Monitoring & SLAs

Track ingestion latency, freshness, error rates, and storage growth. Define SLA targets for critical datasets.

Checklist

• Delta format used for mission-critical tables
• Partitioning documented per table
• Quality gates automated
• Monitoring and alerts configured

Related pages

• Medallion Architecture - How Bronze/Silver/Gold map to our semantic layers
• Data Layers and Modeling - Plainsight's explicit layer definitions
• Naming Conventions
• Data Pipeline Patterns

tip

Start small: implement Bronze -> Silver first, then expand to Gold as business needs stabilize.
