Data Pipeline Patterns¶

Purpose

Proven pipeline patterns ensure reliable data processing and optimal resource utilization in Fabric implementations. Through incremental processing, smart CDC handling, and comprehensive observability, teams can maintain data freshness and recover gracefully from failures. Robust error handling and checkpointing strategies enable automated recovery while optimizing resource usage through intelligent scheduling.

Overview¶

Reliable pipelines are the backbone of a healthy lakehouse. Use idempotent steps, clear checkpoints (watermarks), and structured logging to enable replays and troubleshooting.

%%{init: { "flowchart": { "useMaxWidth": true, "curve": "basis" }, "theme": "base" } }%%
flowchart LR
    Source --> Validate[Validation]
    Validate --> Transform[Transform]
    Transform --> Load[Load]

Quick Reference: Do's and Don'ts¶

Do ✅	Don't ❌
Use incremental processing when possible	Always default to full table reloads
Save watermarks before state changes	Update watermarks before successful completion
Implement idempotent operations (MERGE)	Use INSERT without duplicate checks
Add structured logging and metrics	Rely on generic error messages
Choose the right tool (Pipeline/Notebook/Dataflow)	Force-fit complex logic into basic pipelines
Include retry logic for transient failures	Let pipelines fail without recovery
Parallelize large data loads strategically	Over-parallelize small datasets
Implement circuit breakers for dependencies	Allow cascading failures across pipelines

Core concepts¶

Incremental processing, idempotency, and observability are the pillars of resilient pipelines. Design pipelines as small, testable steps with clear checkpoints and deterministic keys to enable safe replays.

Merge / Upsert pattern¶

Use MERGE statements or duplicate detection to apply changes into dimension/fact tables.

MERGE INTO gold.fct_orders AS T
USING stage.orders AS S
ON T.order_id = S.order_id
WHEN MATCHED AND S.hash <> T.hash THEN UPDATE SET ...
WHEN NOT MATCHED THEN INSERT (...)
;

When to use Pipelines vs Notebooks vs Dataflows¶

Tool	Best use case

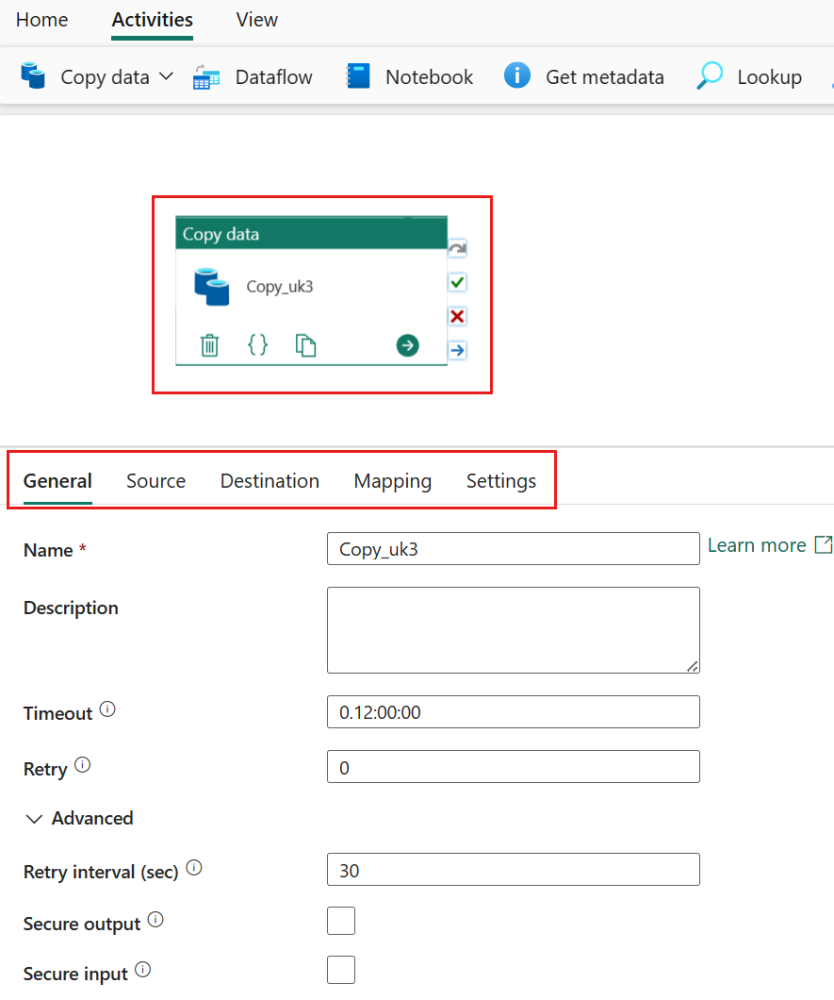

Data Pipelines	Orchestration and scheduled, repeatable ETL/ELT (low-code/no-code). Great for copy jobs and chaining activities.

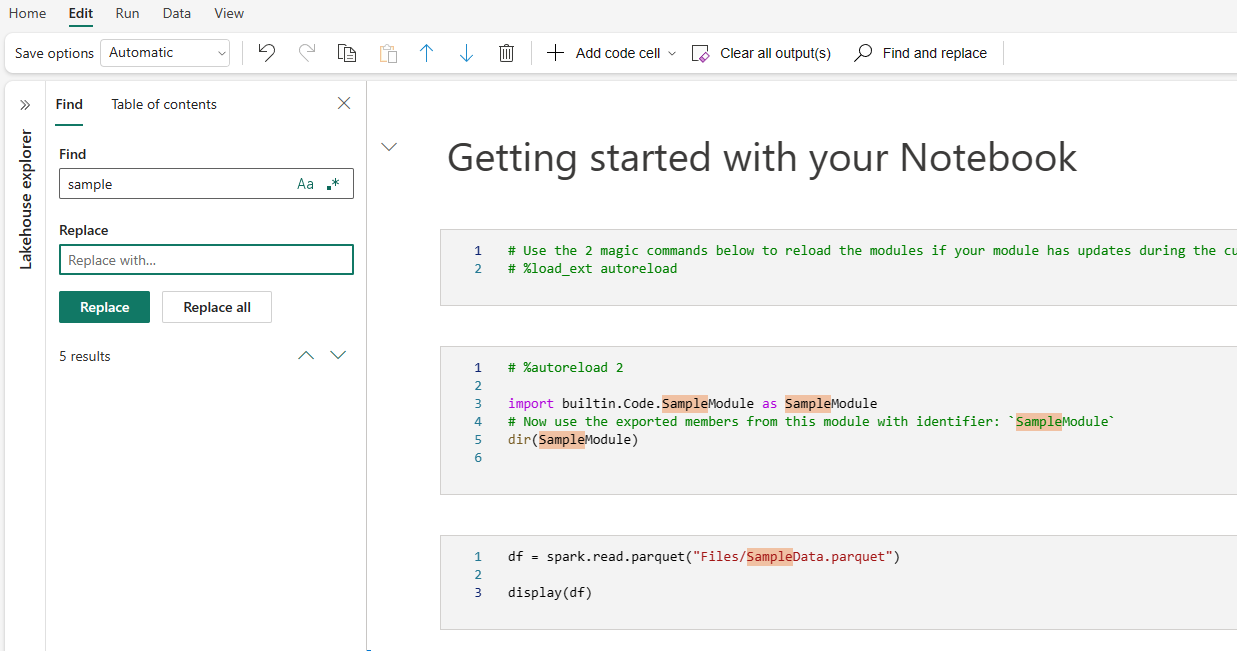

Notebooks	Advanced data processing, custom transform logic and ML experiments. Use when custom code, libraries or iterative exploration is needed. Notebooks can be orchestrated from Data Pipelines.

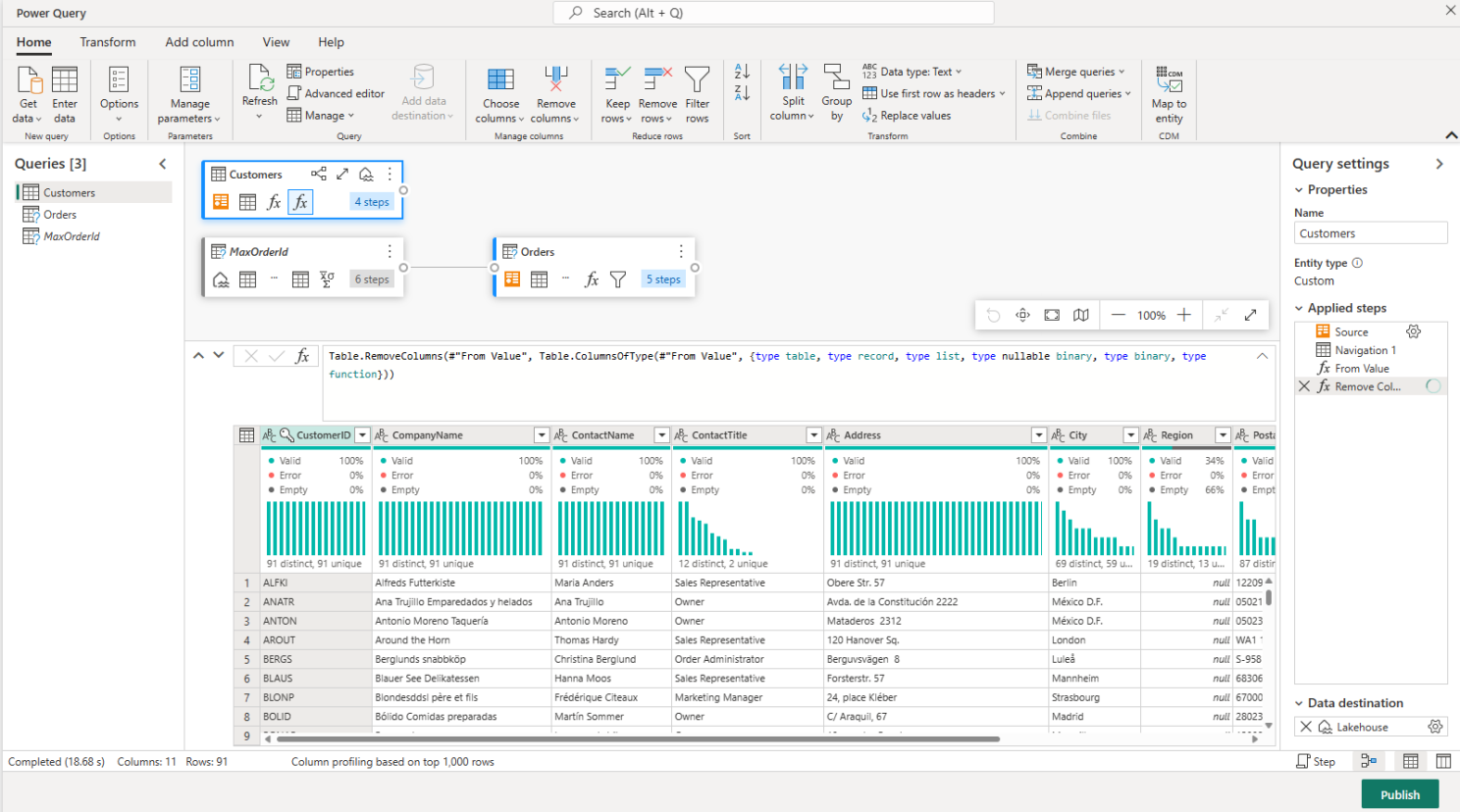

Dataflow Gen2	Self-service transformations for Power BI users (Power Query experience). Best for light-weight transformations tightly coupled to Power BI workflows.

pipelines_editor dataflow_gen2

notebook_sample

Error handling patterns¶

Scope	Mechanism	Example
Activity	Retries (exp backoff)	3 attempts
Pipeline	Checkpoints, idempotency	Save watermark before transform
Orchestration	Circuit breaker	Pause dependent jobs on repeated failures

Performance & cost trade-offs¶

Action	Benefit	Cost
Parallel partitions	Faster loads	More compute
Auto-scaling IR	Handles bursts	Higher peak spend
Smaller chunk sizes	Lower memory	Higher overhead

Security¶

Use managed identities for resource access
Parameterize secrets via Key Vault
